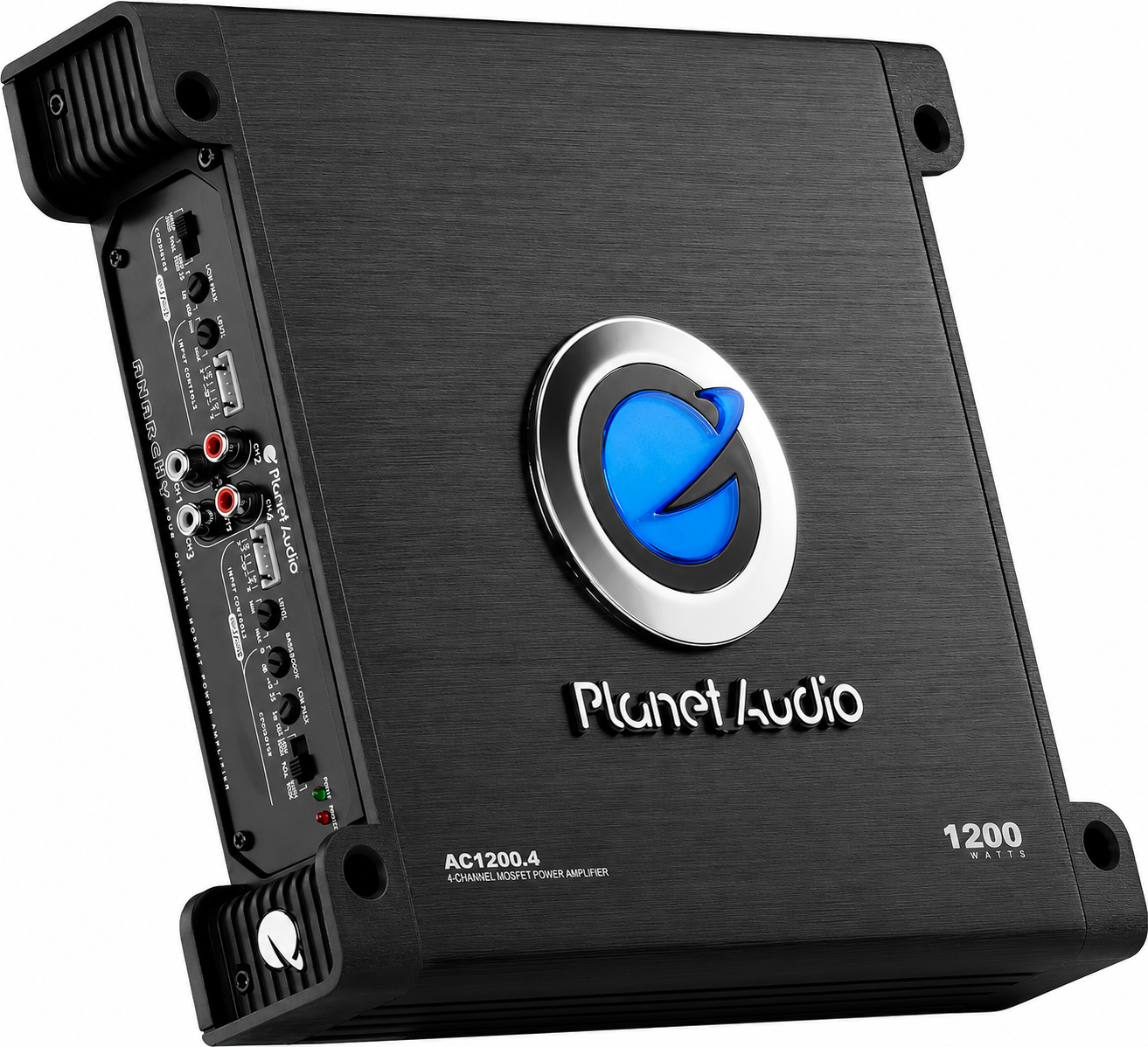

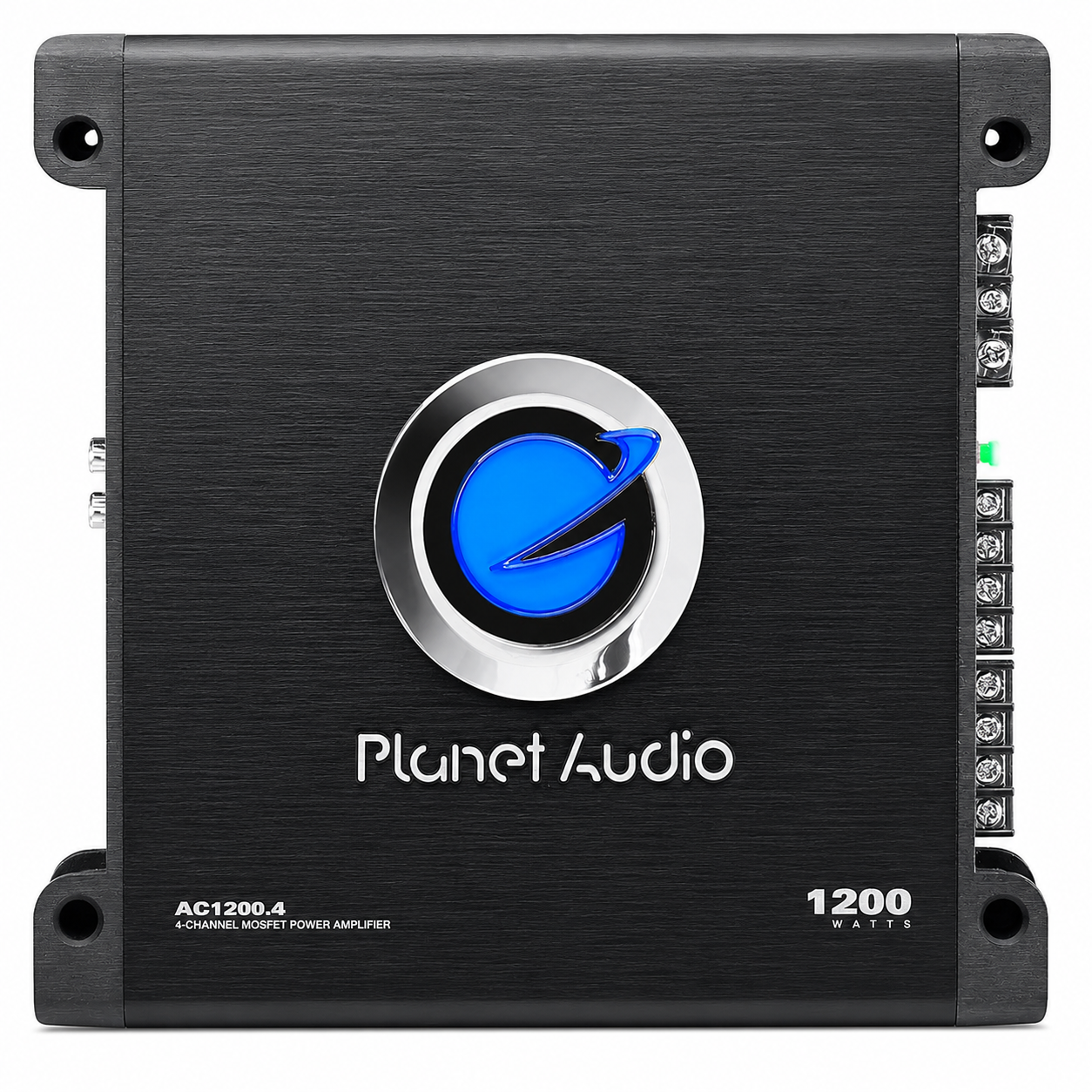

Planet Audio AC1200.4 Class AB 4 Channel Car Amplifier 1200 Watts Max
Key Features:
- Product Type: Full-Range Car Amplifier
- Amplifier Class: Class A/B
- Channel Configuration: 4/3/2 Channel
- Maximum Power Output: 1200 Watts
- RMS Power @ 4 Ohms: 113W × 4
- RMS Power @ 2 Ohms: 225W × 4
- Bridged RMS Power @ 4 Ohms: 450W × 2
- Peak Power @ 2 Ohms: 300W × 4
- Minimum Speaker Impedance: 2 Ohms (Stereo)
- Frequency Response: 20 Hz–20 kHz (±1 dB)
- Signal-to-Noise Ratio: 102 dB
- Channel Separation: ≥90 dB
- Power Supply: MOSFET
- RCA Inputs: 4-Channel
- Speaker-Level Inputs: Yes
- High-Pass Filter: Fixed 80 Hz
- Low-Pass Filter: Variable 45–90 Hz
- Bass Boost: Variable 0–18 dB
- Input Sensitivity Switch: Yes
- Protection Circuits: Thermal, Overload, and Short-Circuit
- Dimensions (L × W × H): 11 × 10 × 2.4 in.
Package Includes:
- 1 × Planet Audio AC1200.4 4-Channel Class A/B Amplifier
- Mounting Hardware
- User Manual
