CRUX SONGM-11 OnStar Interface for GM Class 2 Bose & Non-Amplified Systems

CRUX Interfacing Solutions SONGM-11
Key Features:

• Product Type: OnStar Radio Replacement Interface
• Vehicle Network: GM Class II Data Bus
• Radio Application: Aftermarket radio installation
• Audio System Compatibility: Non-Bose, Standard Bose, and Premium Bose/Y91 amplified systems
• OnStar Retention: Yes
• Factory Warning Chime Retention: Yes
• Factory Amplifier Retention: Yes, where equipped
• Steering Wheel Audio Control Retention: No
• Wiring: EIA color-coded

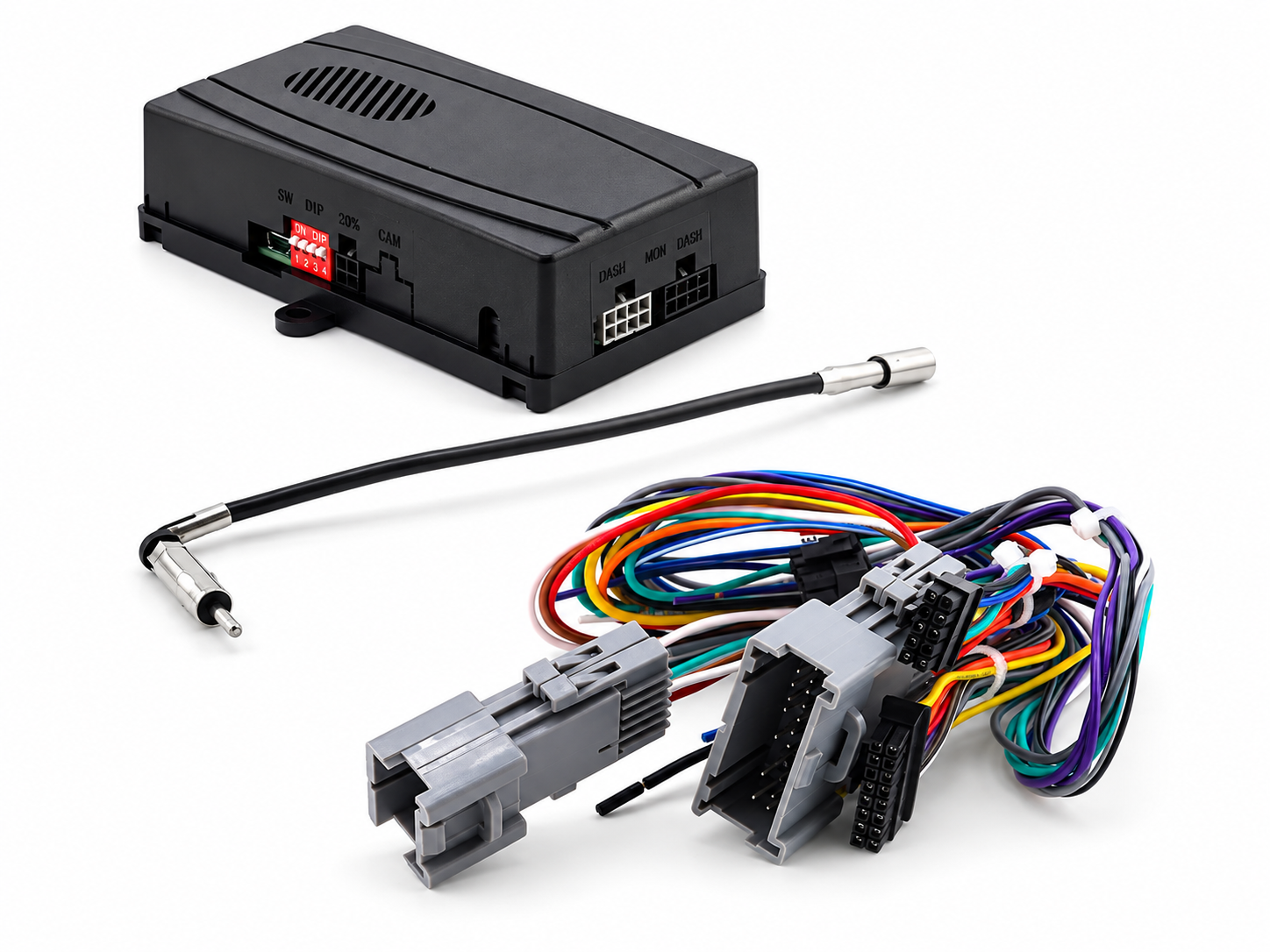

Construction

• Electronic interface module
• Vehicle-specific wiring harness
• Plug-in connection to compatible GM factory radio wiring
• EIA color-coded wiring for aftermarket radio connections
• Includes antenna adapter
• Built-in chime volume adjustment
• Designed to interface the aftermarket radio with the vehicle's Class II data system. Manuals+

Features

• Retains factory OnStar
• Retains factory warning chimes, including seat belt, key-in-ignition, low fuel, low oil, check-engine, and lights-on alerts
• Works with non-amplified, standard Bose, and Premium Bose/Y91 systems
• Retains factory amplifier where applicable
• Adjustable chime volume
• Adjustable OnStar volume through supported factory controls
• Provides installation outputs including parking brake, reverse, and vehicle speed sense (VSS)
• Designed for aftermarket radio installation without eliminating important factory audio/data functions. CRUX Interfacing

Dimensions

CRUX does not currently publish reliable bare-module dimensions or net product weight for the SONGM-11 on its official product page.

For marketplace listings, I recommend not estimating the product or shipping dimensions/weight unless the actual retail package can be measured.

Performance

The SONGM-11 functions as a radio integration interface rather than an amplifier, so specifications such as RMS wattage, impedance, frequency response, or output power are not applicable.

It communicates with compatible GM Class II systems to preserve factory functions while allowing an aftermarket head unit to be installed. CRUX Interfacing

Important: On Premium Bose Y91 systems, front-to-rear fader capability is not retained. Crutchfield

Applications

CRUX's current compatibility list includes select vehicles such as:

• Buick: LaCrosse 2005–2009; Rainier 2004–2007; Rendezvous 2003–2007; Terraza 2005–2007
• Cadillac: Escalade / ESV / EXT 2003–2006
• Chevrolet: Avalanche 2003–2006; Cavalier 2000–2005; Colorado 2004–2011; Corvette 2005–2010; Impala 2000–2005; Malibu 2001–2003; Monte Carlo 2000–2005; Silverado 1500–3500 2003–2006; Silverado Classic 2007; SSR 2004–2006; Suburban/Tahoe 2003–2006; Trailblazer 2005–2009; Uplander 2005–2009
• GMC: Canyon 2004–2011; Envoy 2005–2009; Savana 2003–2007; Sierra 1500–3500 2003–2006; Sierra Classic 2007; Yukon/XL 2003–2006
• Hummer: H2 2003–2007; H3/H3T 2005–2010
• Isuzu: Ascender 2004–2008; select i-Series 2006–2008
• Oldsmobile: Alero, Bravada, Intrigue and Silhouette in specified model years
• Pontiac: Aztek, Grand Am, Grand Prix and Sunfire in specified model years
• Saab: 9-7X 2005–2008
• Saturn: Relay 2007. CRUX Interfacing

Exact compatibility should always be checked by year, make, model, factory audio system, and original radio configuration.

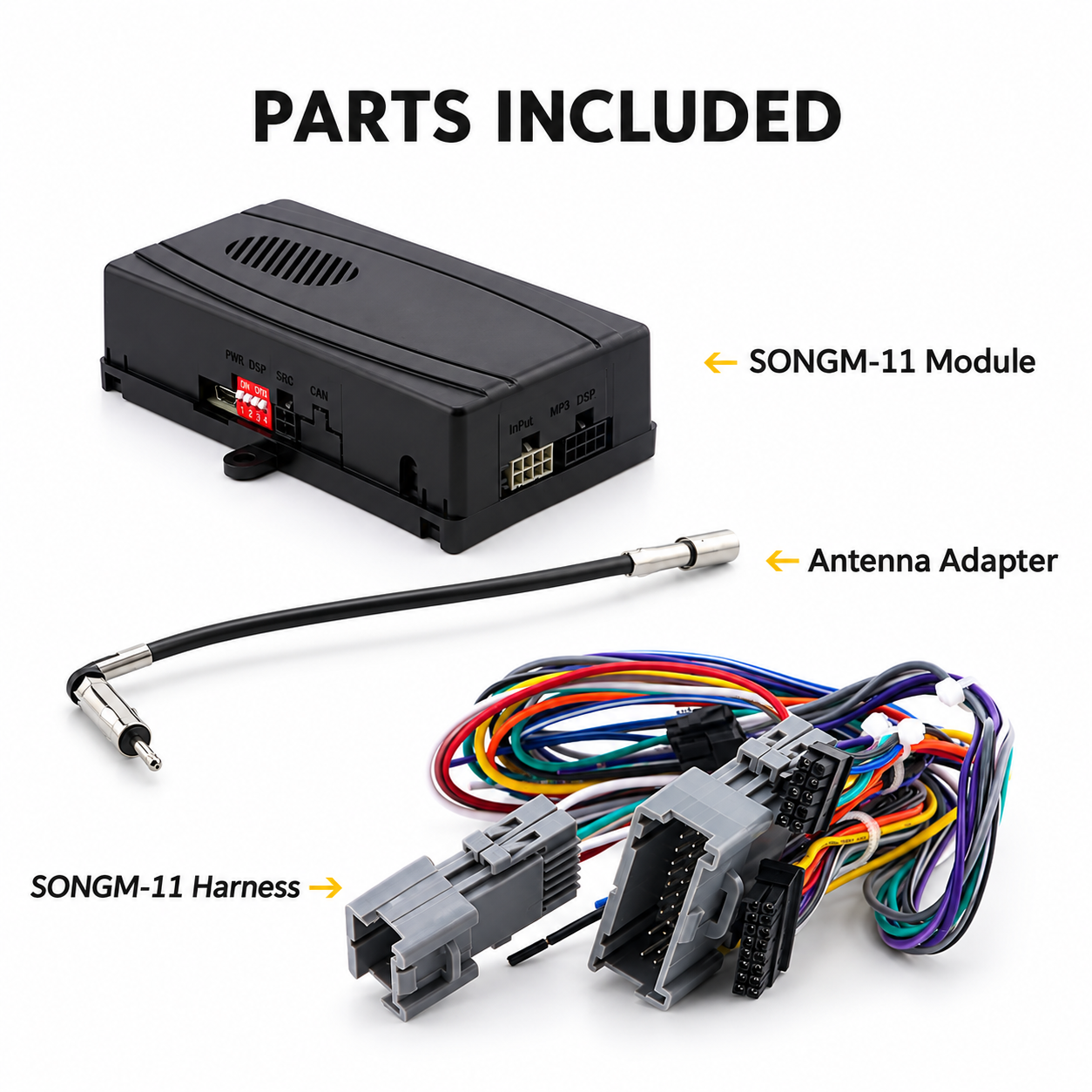

Included

• 1 × CRUX SONGM-11 Interface Module
• 1 × SONGM-11 Wiring Harness
• 1 × Antenna Adapter
