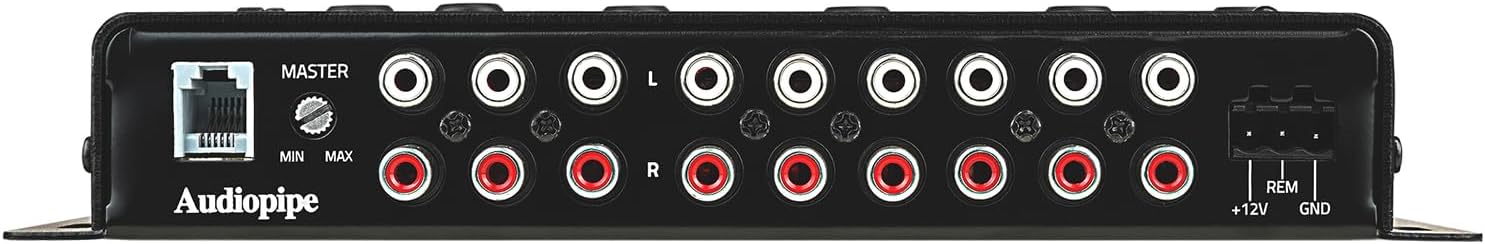

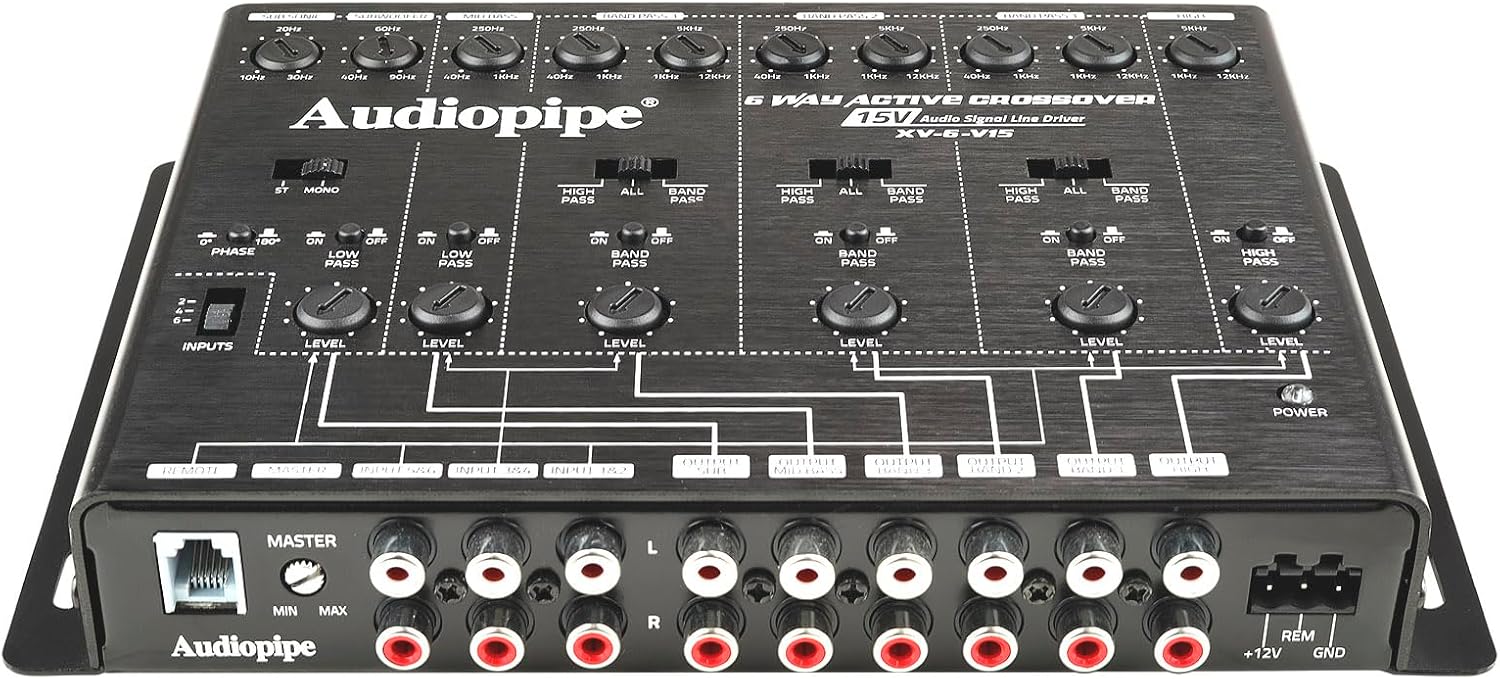

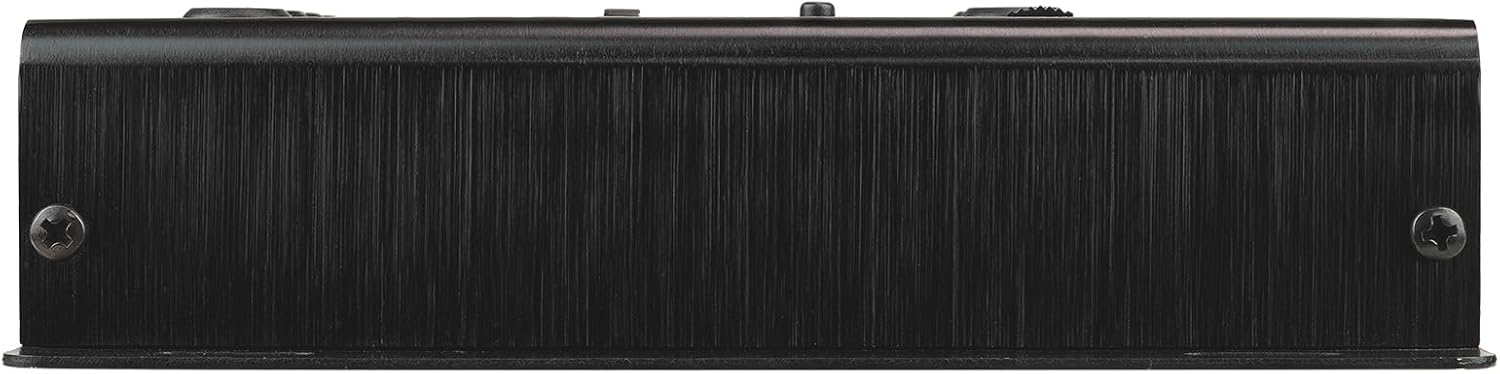

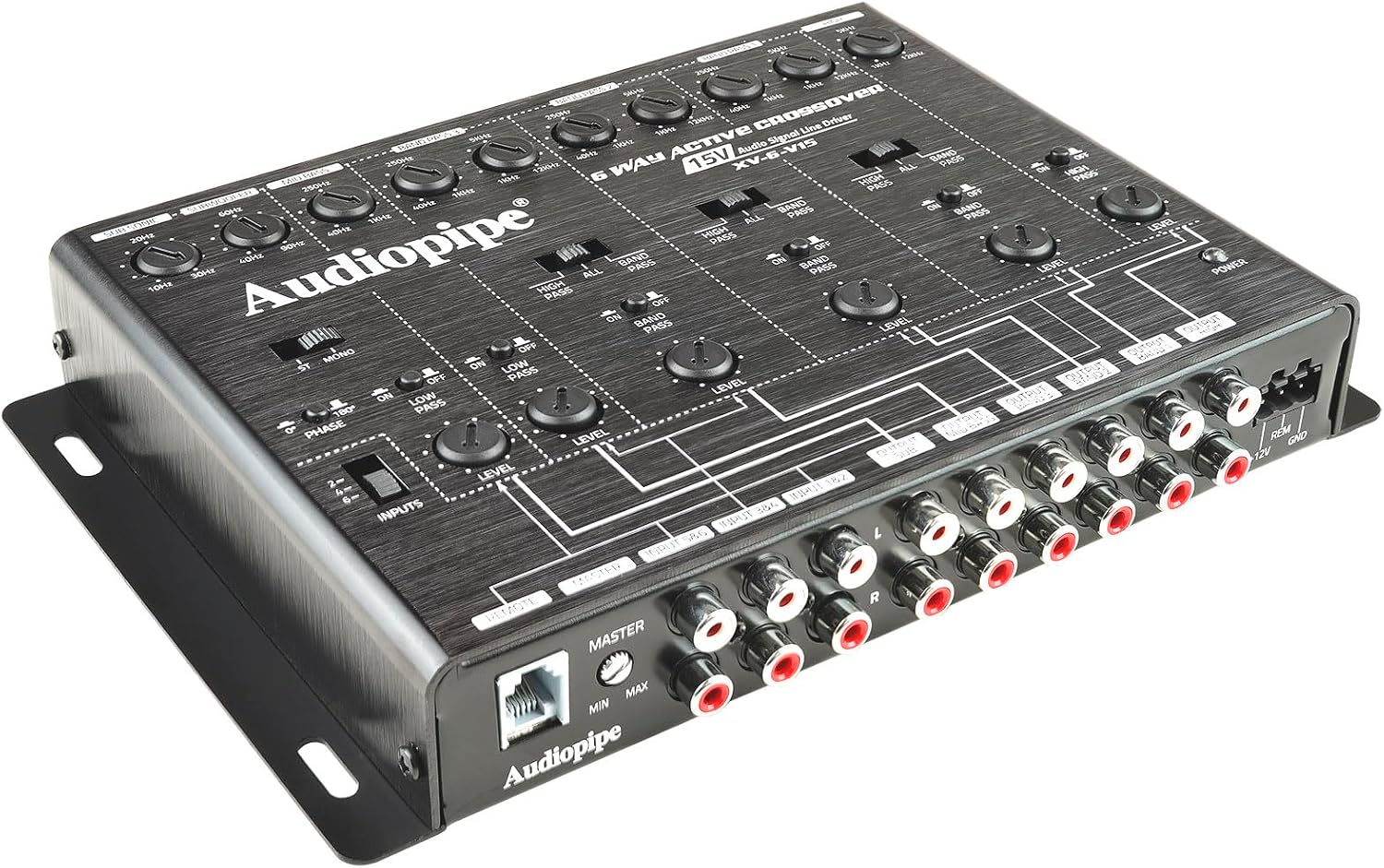

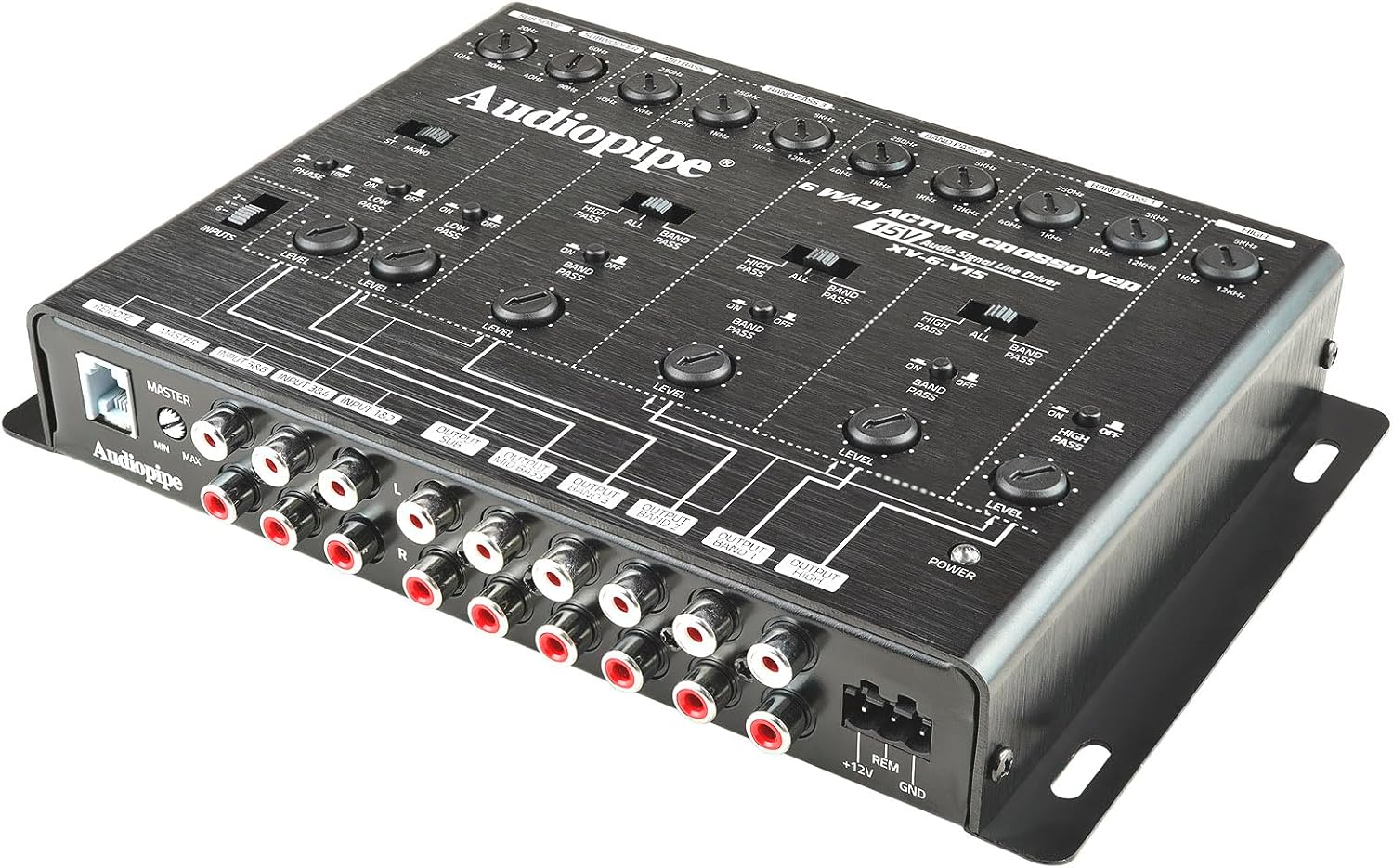

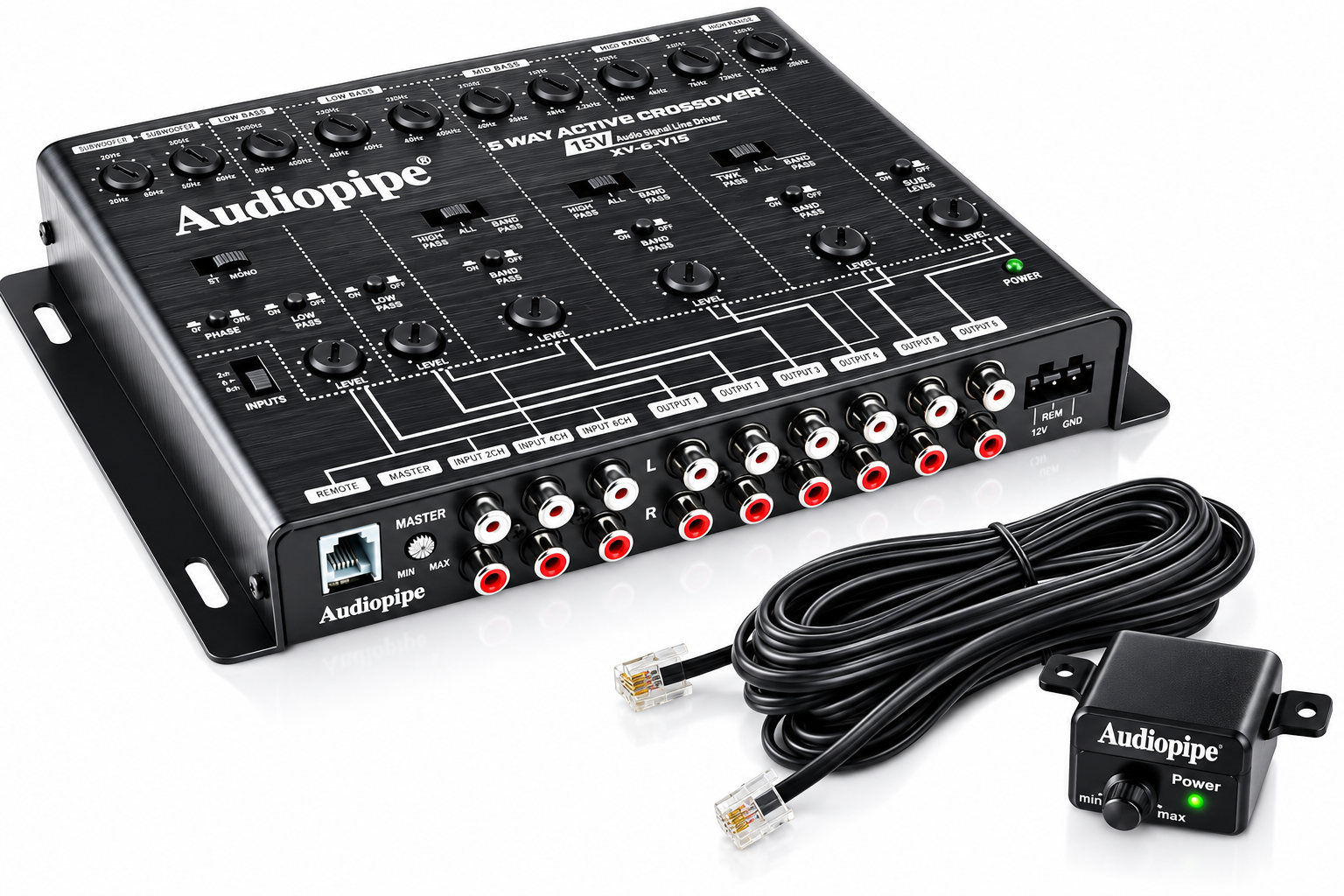

Audiopipe XV-6-V15 6 Way Active Crossover w/ Remote Bass Knob Bass Boost
Key Features:
- Product Type: 6-Way Active Crossover
- Inputs: Front, Rear, and Subwoofer
- Outputs: 6-Channel (12 Outputs)
- Input Selector: 2 / 4 / 6 Channel
- Line Driver Output: 15V RMS
- Crossover Type: Active
- Crossover Frequency: Continuously Variable with Multiplier Switch
- High/Tweeter Crossover: 1 kHz–12 kHz @ 12 dB/Octave
- Midbass Crossover: 40 Hz–1 kHz @ 12 dB/Octave
- Subwoofer Crossover: 40 Hz–90 Hz @ 12 dB/Octave
- Subsonic Filter: 10 Hz–30 Hz @ 18 dB/Octave
- Phase Control: 0° / 180°
- Mono/Stereo Switch: Yes
- Independent Gain Control: Yes
- Low-Pass Gain: Adjustable
- Bass Boost: Yes
- Remote Bass Level Control: Included
- Ground Loop Isolation Circuit: Yes
- Power LED Indicator: Yes
- Signal-to-Noise Ratio: >105 dB
- Total Harmonic Distortion (THD): 0.04% @ 1 kHz
- Stereo Separation: >70 dB
- Dimensions (W × D × H): 230 × 160 × 38 mm (9.1 × 6.3 × 1.5 in.)
- Color: Black
Package Includes:
- 1 × Audiopipe XV-6-V15 6-Way Active Crossover

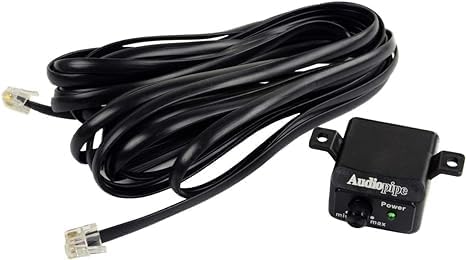

- 1 × Remote Bass Level Control Knob
- Mounting Hardware
- User Manual
