Audiopipe APMINIB800A 8" Powered Subwoofer Enclosure 400W RMS 4 Ohm

Audiopipe AP-MINIB-800A
Key Features:

• Product Type: Powered / Amplified Ported Bass Enclosure
• Subwoofer Size: 8 in
• Number of Subwoofers: 1
• Enclosure Type: Ported / Vented
• Maximum Power: 800W Max
• RMS Power: 400W RMS according to established listings for this model
• Impedance: 4 Ohms Mono
• Amplifier: Built-in
• Voice Coil: 2 in, 4-layer BASV single voice coil
• Magnet: 96 oz strontium

Construction

• High-quality acoustic-grade MDF enclosure
• Durable high-density carpet covering
• Single 8" high-performance woofer
• 2" 4-layer BASV single voice coil
• Heavy 96 oz strontium magnet
• Waveguide port designed to enhance bass output
• Integrated amplifier eliminates the need for a separate external subwoofer amplifier. Audiopipe

Features

• All-in-one powered subwoofer enclosure
• 800W maximum / 400W RMS

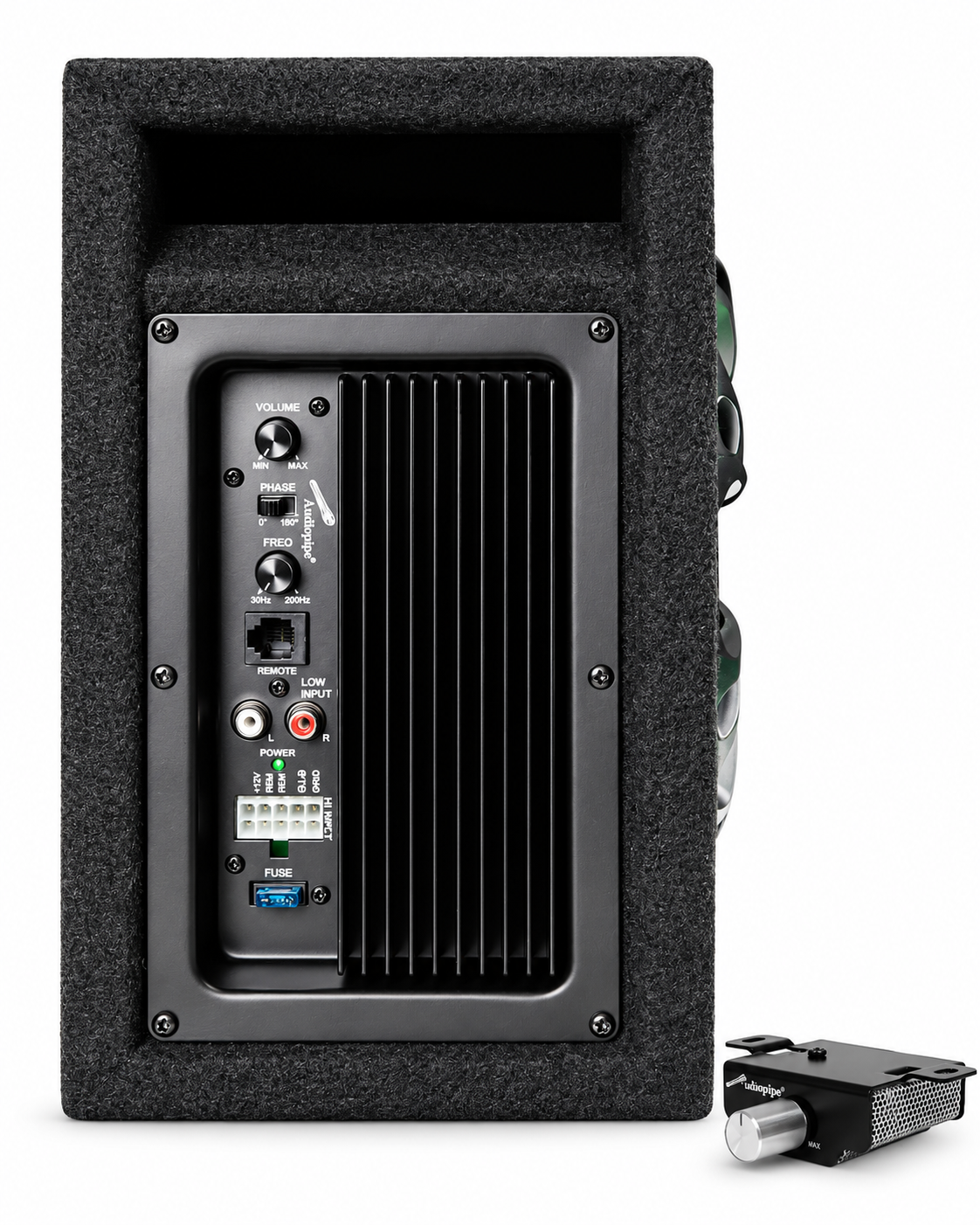

• Built-in amplifier and turn-on circuit
• High-level speaker inputs
• Low-level RCA inputs
• Variable low-pass crossover
• Remote bass level control included
• Compact enclosure designed for space-limited automotive installations
• Waveguide ported chamber for enhanced low-frequency output. Audiopipe

Dimensions

Established specifications for the AP-MINIB-800A:

• Width: 18.5 in
• Depth: 6-3/8 in (6.375 in)
• Height: 11 in
• Metric equivalent: approximately 467 × 160 × 279 mm Audiopipe

Audiopipe's current page does not provide a reliable net product weight or packaged shipping weight, so I would not estimate these for a marketplace listing.

Performance

• Maximum Power: 800W
• RMS Power: 400W
• Nominal Impedance: 4Ω mono
• Magnet: 96 oz strontium
• Voice Coil: 2" 4-layer BASV
• Built-in amplifier
• Variable low-pass crossover for bass-frequency adjustment
• Remote level control allows bass output to be adjusted from the driver's area. Audiopipe

Applications

Designed for:

• Car audio systems
• Trucks
• SUVs
• Hatchbacks
• Other compatible 12V automotive audio installations

Its relatively shallow 6-3/8" depth makes it useful where installation space is limited.

Included

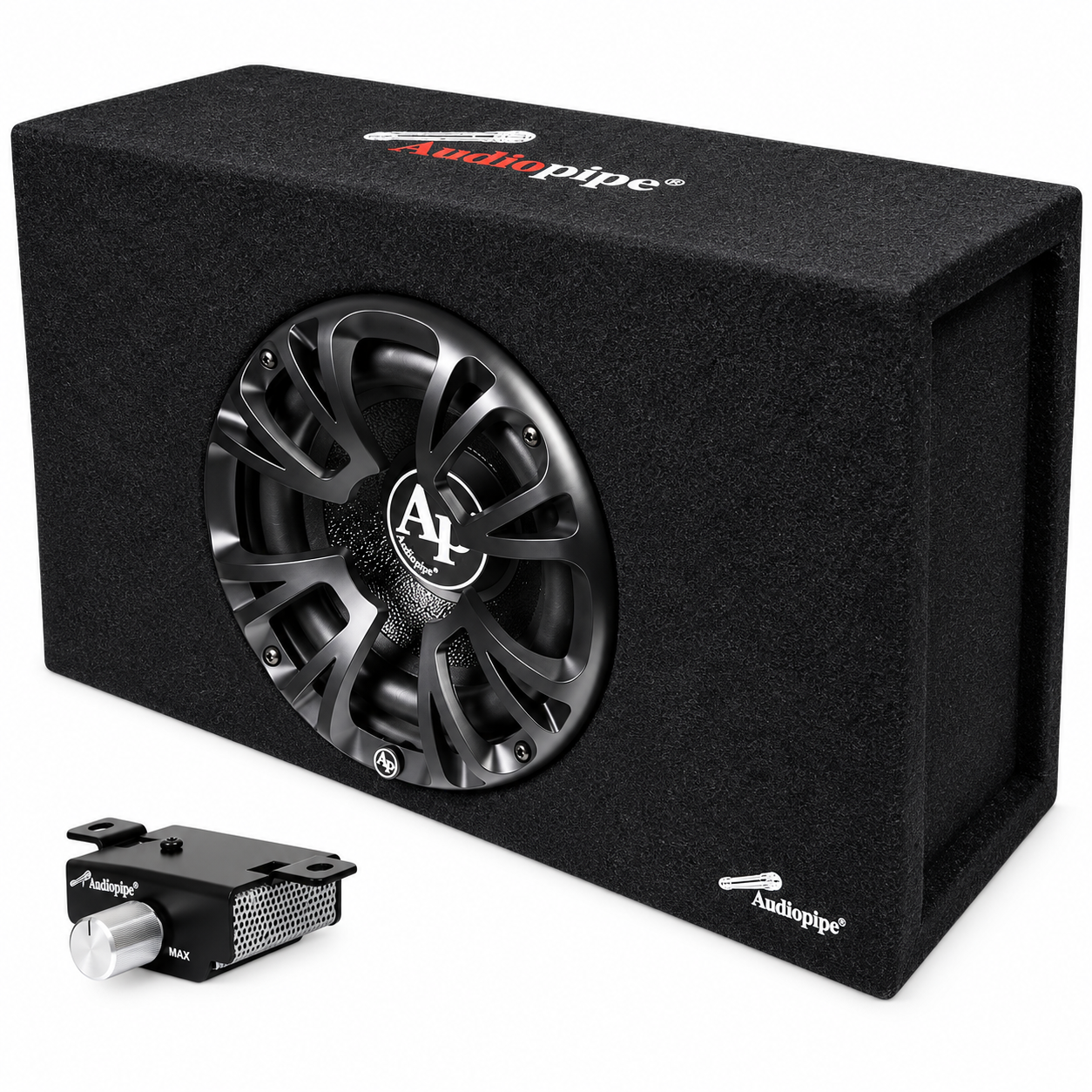

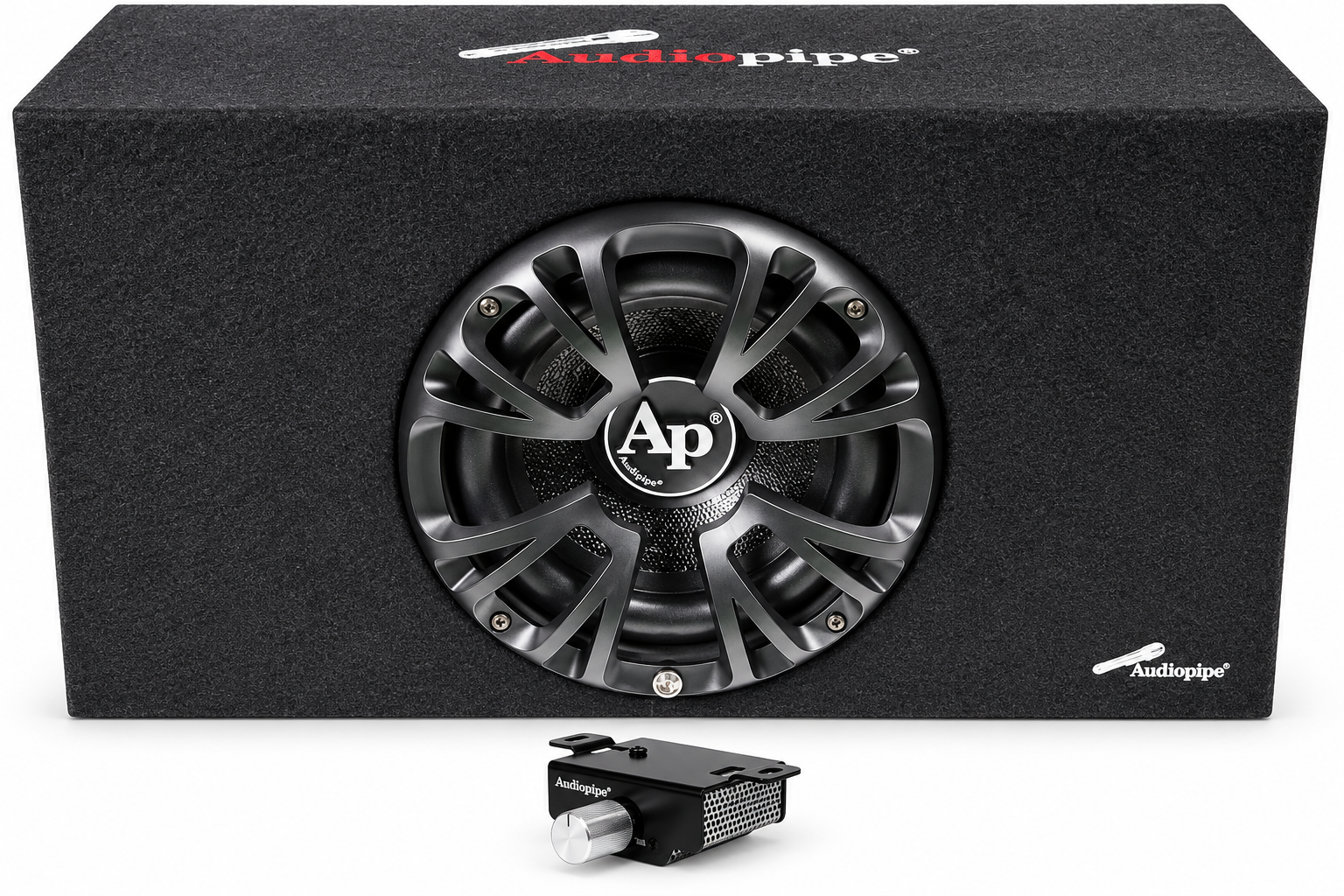

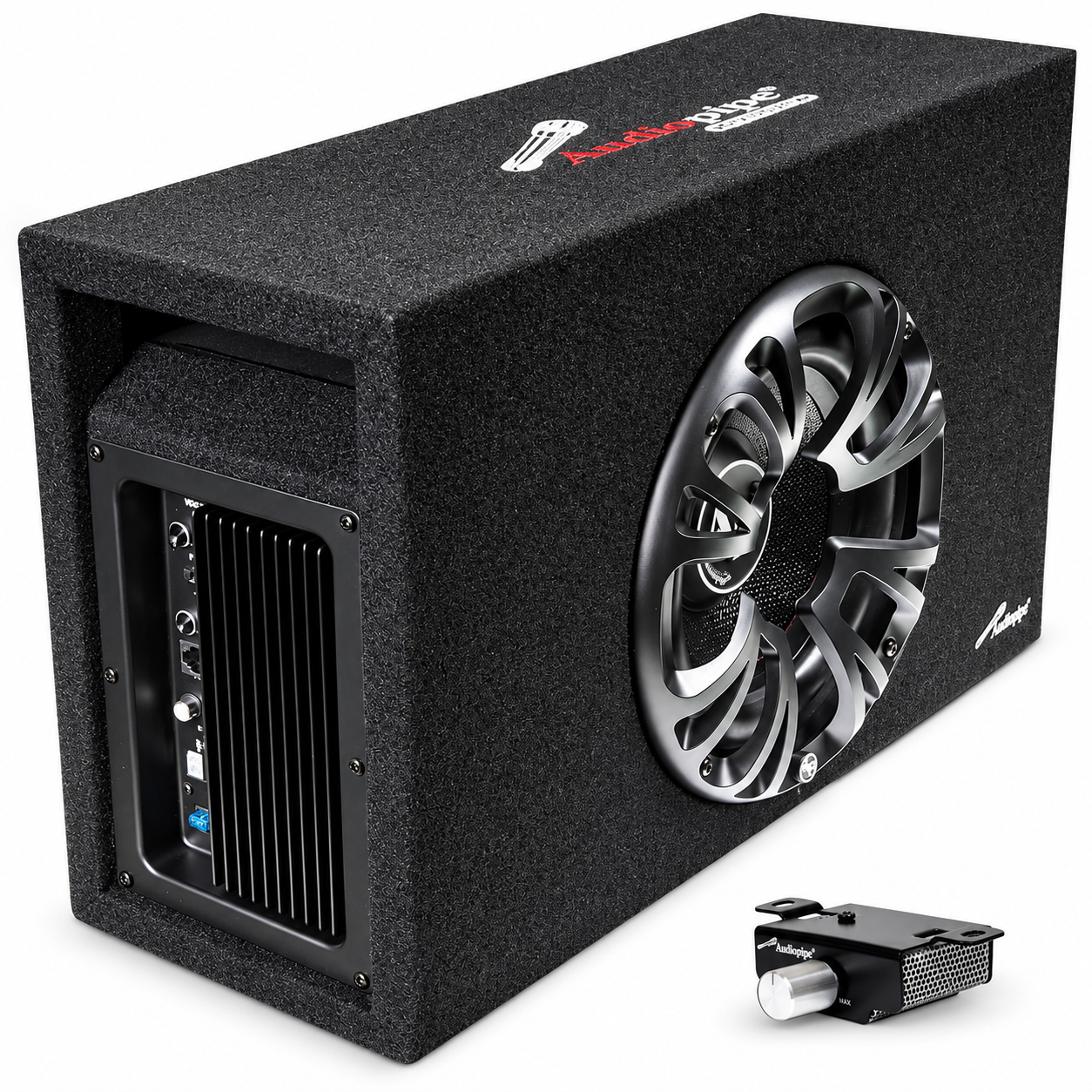

• 1 × Audiopipe AP-MINIB-800A Powered Bass Enclosure
• 1 × Pre-installed 8" subwoofer
• Built-in amplifier
• Remote bass level control

External amplifier is not required because this model already has an integrated amplifier.
