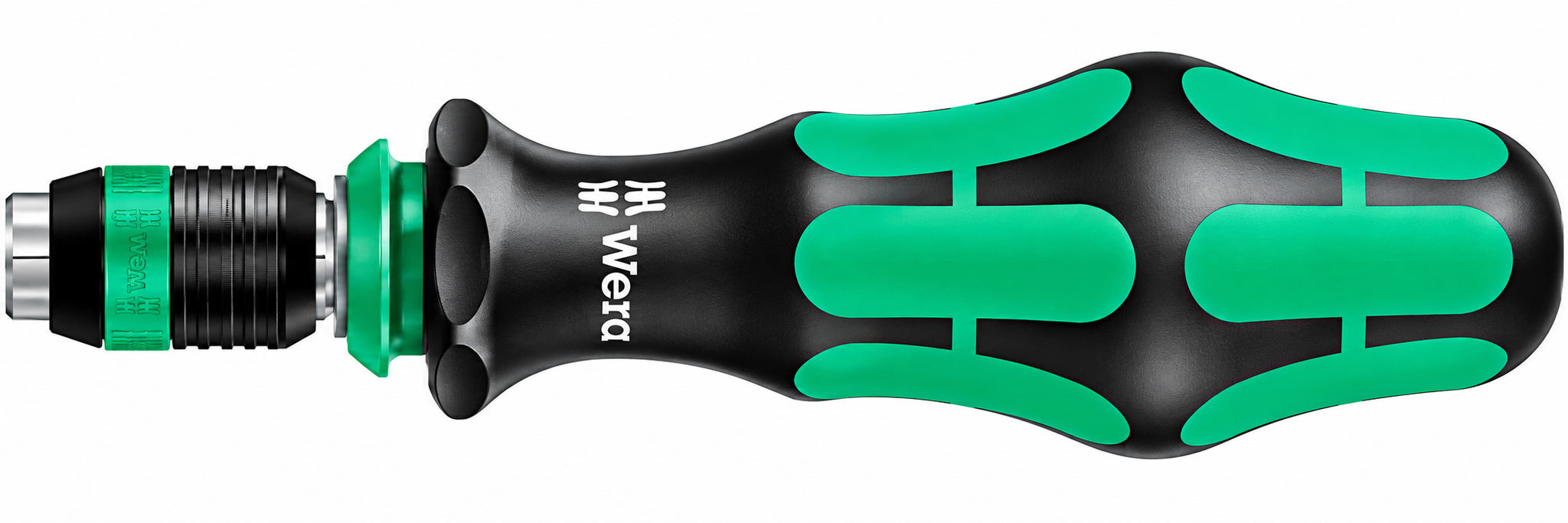

Wera 817 R SB Rapidaptor Quick Release Bit Holder Screwdriver 1/4"
Wera 05073541001 817 R SB Bitholding Screwdriver
Key Features:
- Product Type: Bitholding Screwdriver with Quick-Release Chuck
- Drive / Bit Size: 1/4 in Hex
- Blade Length: 133 mm
- Blade Type: Retractable / Telescopic Bayonet
- Chuck Type: Rapidaptor Quick-Release
- Handle Type: Multi-Component Kraftform Plus
- Compatible Bits: 1/4 in hex bits per DIN ISO 1173-C 6.3 and E 6.3
- Country of Origin: Czech Republic
Construction
- Multi-component Kraftform Plus ergonomic handle
- Retractable telescopic bayonet blade
- Integrated Rapidaptor quick-release bit holder
- Strong permanent magnet for secure bit retention
- Hard handle zones for fast turning
- Soft grip zones for higher torque transfer
- Anti-roll handle design helps prevent the tool from rolling away
Features
- Rapidaptor system allows quick bit changes without additional tools
- Bit automatically locks when inserted
- Spring-assisted release helps remove bits easily
- Telescopic blade retracts into the handle for work in confined areas
- Blade can extend for full-size screwdriver use

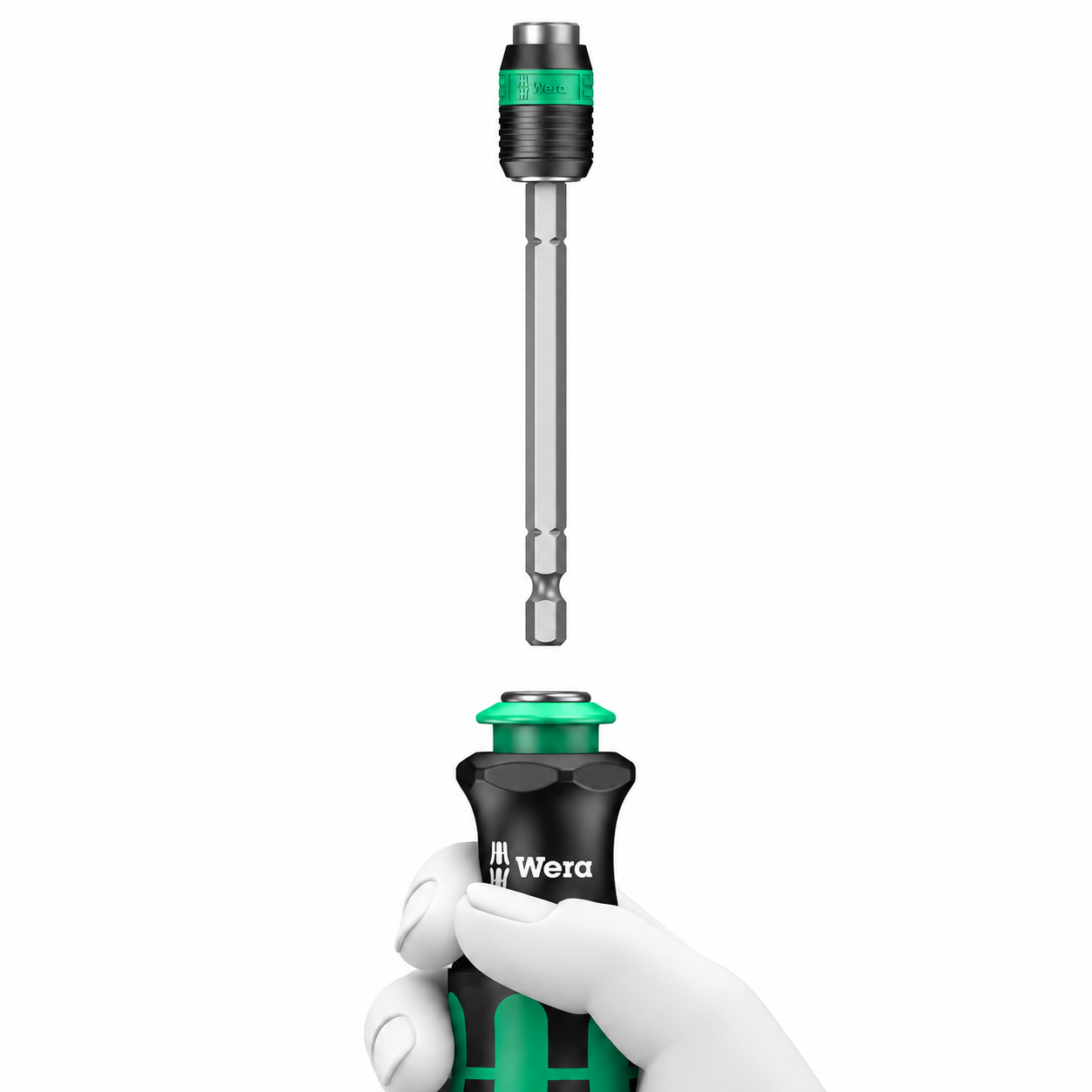

- Bayonet blade can be removed and used as a machine bit adapter
- Accepts Wera Series 1 and Series 4 bits as well as compatible DIN/ISO 1/4-inch bits
Dimensions
- Bit Drive: 1/4 in Hex
- Blade Length: 133 mm / approximately 5.24 in
- Packaged Dimensions: 245 × 105 × 40 mm
- Product / Packaged Weight: 119 g / approximately 4.2 oz
Performance
- Rapid-in feature allows bits to be inserted without operating the locking sleeve
- Self-locking mechanism holds installed bits securely
- Rapid-out feature releases the bit by pushing the sleeve forward
- Permanent magnet helps minimize bit movement during use
- Retractable blade provides flexibility between compact and full-length screwdriving applications
Applications
- General screwdriving
- Mechanical assembly
- Maintenance and repair
- Electrical and installation work
- Tight-access fastening
- Use with compatible 1/4-inch hex screwdriver bits
- Removable blade can also be used with compatible power screwdrivers or drill chucks
Included

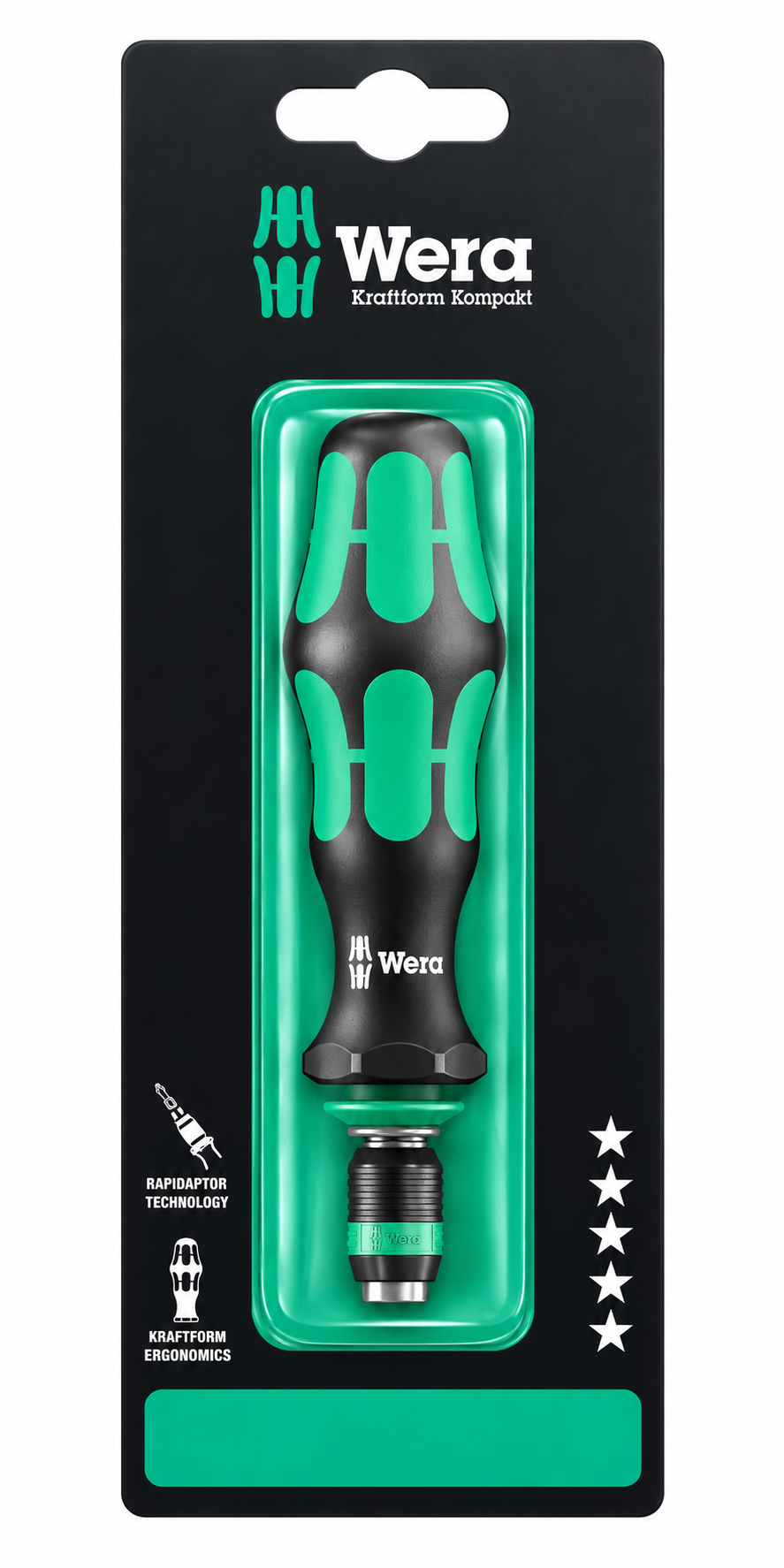

- 1 × Wera 817 R SB Kraftform Bitholding Screwdriver
- 1 × Integrated 1/4 in Rapidaptor Quick-Release Bayonet Blade
Note: This listing is for the bit-holding screwdriver/holder itself. A separate assortment of screwdriver bits is not listed as included.
