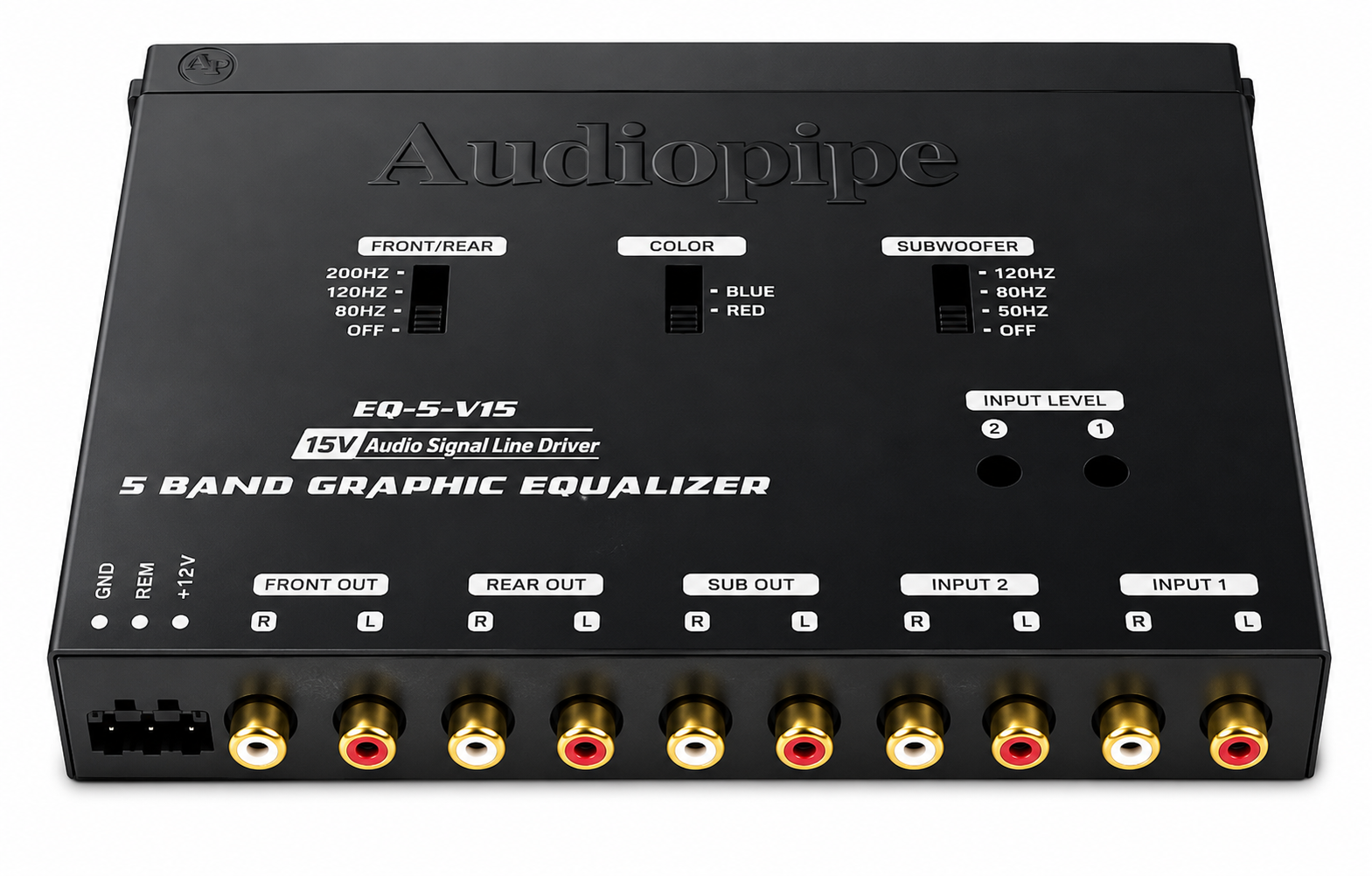

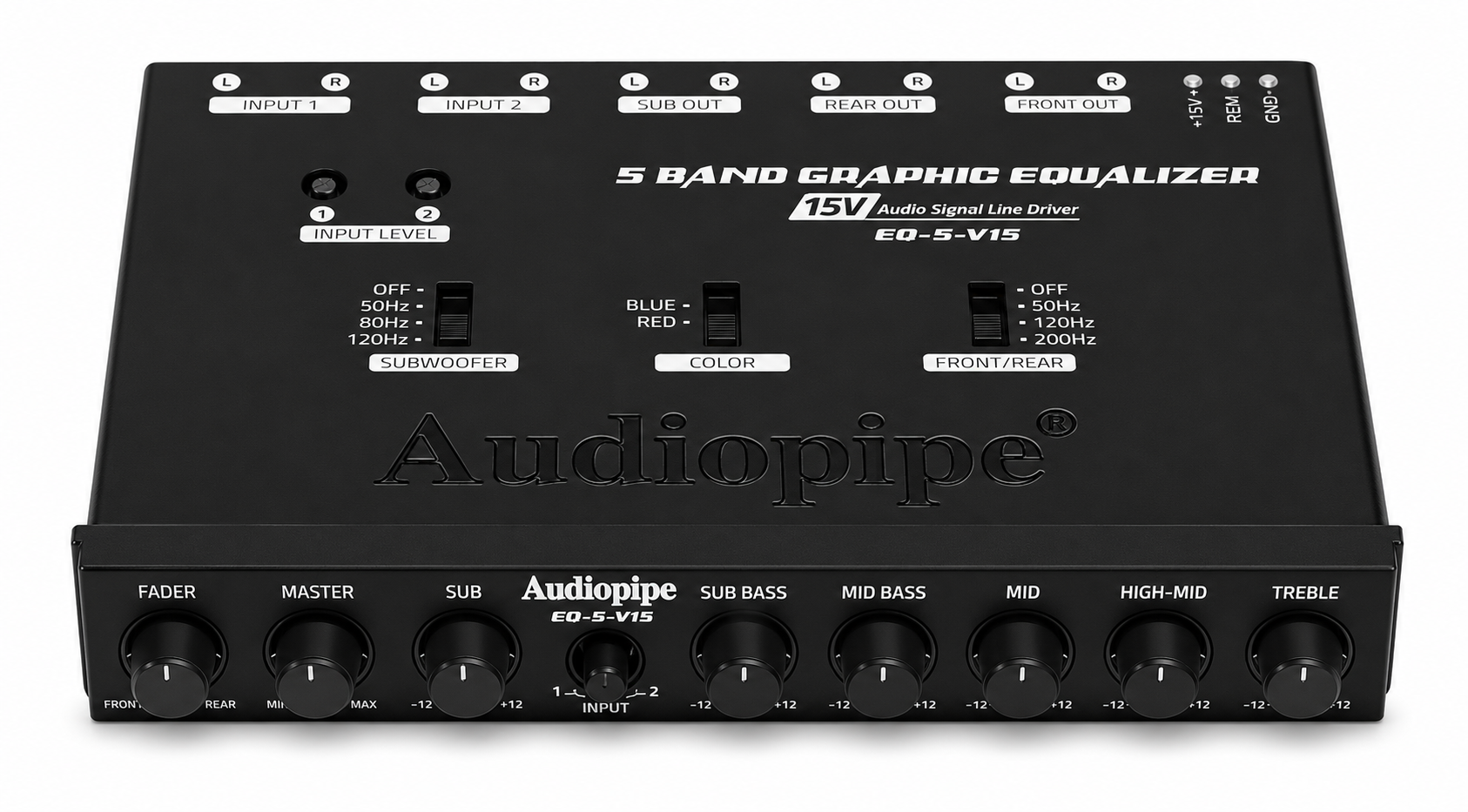

Audiopipe EQ-5-V15 5-Band Graphic Equalizer w/ Subwoofer Control Preamp
• Product Type: In-Dash Graphic Equalizer
• Equalizer Bands: 5
• Equalization Frequencies: 45 Hz, 150 Hz, 500 Hz, 2.2 kHz, 12 kHz
• Equalization Range: ±12 dB per Band
• Maximum Line Output: 15V
• RCA Outputs: Front, Rear, and Subwoofer (3 Stereo Outputs)
• RCA Inputs: Input 1 & Input 2
• Input Sensitivity: 50 mV – 3V
• Frequency Response: 10 Hz – 50 kHz
• Signal-to-Noise Ratio: >100 dB
• Total Harmonic Distortion (THD): 0.01%
• Low-Pass Crossover: Selectable 50 Hz / 80 Hz / 120 Hz
• High-Pass Crossover: Selectable 80 Hz / 120 Hz / 200 Hz
• Chassis Size: Universal Half-DIN
• Connector Type: Gold-Plated RCA

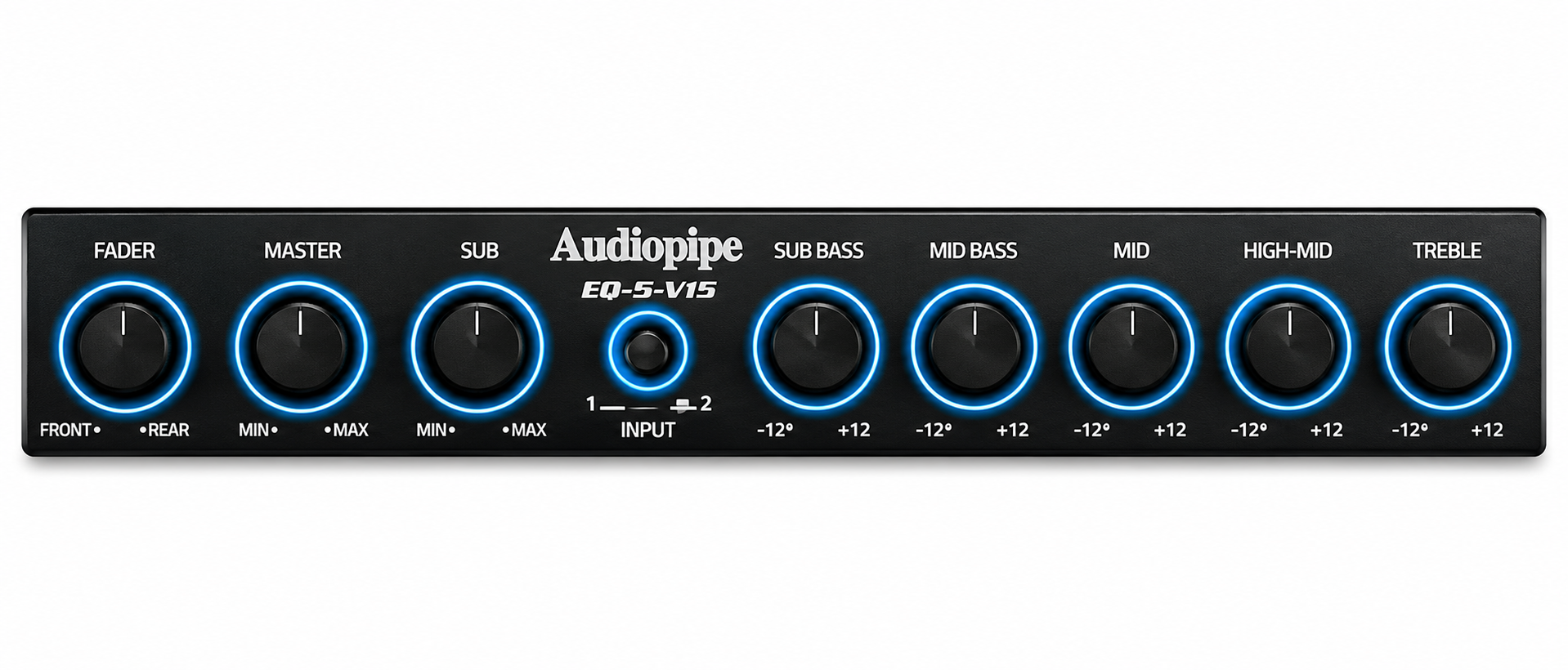

• Illumination: Selectable Blue or Red Backlighting
• Application: Car Audio Systems
• Country/Region of Manufacture: China
Package Includes
• 1 × Audiopipe EQ-5-V15 5-Band Graphic Equalizer
• 1 × Power Harness
• Mounting Hardware
• User Manual
